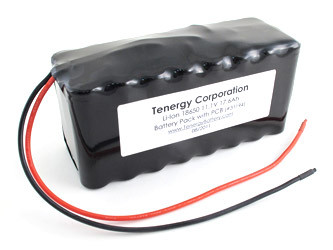

Product Highlights
- Chemistry Li-ion
- Nominal Voltage (V) 11.1
- Capacity (mAh) 17600
- Max Continuous Discharge Current 9.0A
- Weight 1106g
- Dimensions 147 x 74 x 56mm (LxWxT)
- Connector Bare Leads
output
- Type Pack
- Chemistry: Li-ion
- Nominal Voltage: 11.1V
- Capacity: 17600mAh
- Max Continuous Discharge Current: 9.0A
- Battery Charging Current
- Standard: 3.5A
- Rapid: 8A
- Weight: 1106g
- Dimensions: 147 x 74 x 56mm (LxWxT)
- Connector Bare Leads
- Avg. Temperature Ranges for
- Charging 32° F~113° F / (0~45°C)
- Discharging 14°F ~140°F / (-10~60°C)
- Storage 32°F ~86°F / (0~30°C)
- PCB/Pack Protection
- Over Charge Cutoff Voltage: >12.6V
- Over Discharge Cutoff: <9.0V
- Over Current Cutoff (A) 17 ± 4A
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01281 | Tenergy TLP-4000 Li-ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 1.0A |
| 01340 | Tenergy Li-ion 11.1V Battery Pack Charger | 11.1V (3S only) | 2.0A |
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.- users should have enough knowledge on Li-ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-ion battery packs.
- it is strongly suggest that you use our Smart Li-ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
