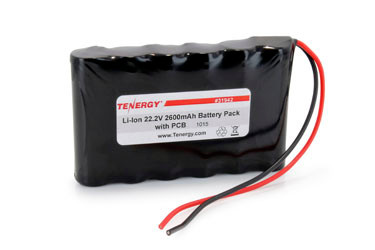

Product Highlights
- Chemistry Li-ion
- Nominal Voltage (V) 22.2
- Capacity (mAh) 2600
- Max Continuous Discharge Current 5A
- Weight 290g
- Dimension 111 x 69 x 30mm (LxWxT)
- Connector Bare Leads
output
- Type Pack
- Chemistry Li-ion
- Nominal Voltage (V) 22.2
- Capacity (mAh) 2600
- Max Continuous Discharge Current 5A
- Battery Charging Current
- Standard 0.5A
- Rapid 1A
- Weight 290g
- Dimension 111 x 69 x 30mm (LxWxT)
- Connector Bare Leads
- Avg. Temperature Ranges for
- Charging 32° F~113° F / (0~45°C)
- Discharging 14°F ~140°F / (-10~60°C)
- Storage 32°F ~86°F / (0~30°C)
- PCB/Pack Protection(for single cell voltages)
- Overcharge Protection <25.2V
- Over-discharge Protection >18.0V
- Over Current Cutoff (A): 8 ± 2A
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.
- users should have enough knowledge on Li-ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-ion battery packs.
- it is strongly suggested that you use our Smart Li-ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
