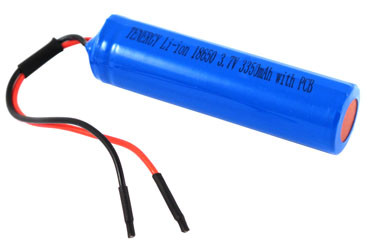

Product Highlights
- Chemistry Li-ion
- Nominal Voltage (V) 3.6
- Capacity (mAh) 3500
- Max Continuous Discharge Current 3.5A
- Weight 56g
- Connector: Bare Leads
- Dimension 69 x 19mm (LxD)
output
- Type Pack
- Chemistry Li-ion
- Nominal Voltage (V) 3.6
- Capacity (mAh) 3500
- Max Continuous Discharge Current 3.5A
- Battery Charging Current
- Standard 0.6A
- Rapid 1.6A
- Weight 56g
- Connector: Bare Leads
- Dimension 69 x 19mm (LxD)
- Avg. Temperature Ranges for
- Charging 32° F~113° F / (0~45°C)
- Discharging 14°F ~140°F / (-10~60°C)
- Storage 32°F ~86°F / (0~30°C)
- PCB/Pack Protection(for single cell voltages)
- Overcharge Protection >4.2V
- Over-discharge Protection <3.0V
- Over Current Cutoff (A): 6.5 ± 2A
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01348 | Tenergy Li-ion 3.7V 1.5A Battery Pack Charger | 3.7V (1S) | 1.5A |
| 01211 | Tenergy TLP-2000 Li-ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 0.5A |
| 01281 | Tenergy TLP-4000 Li-ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 1.0A |
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.
- users should have enough knowledge on Li-ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-ion battery packs.
- it is strongly suggested that you use our Smart Li-ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
