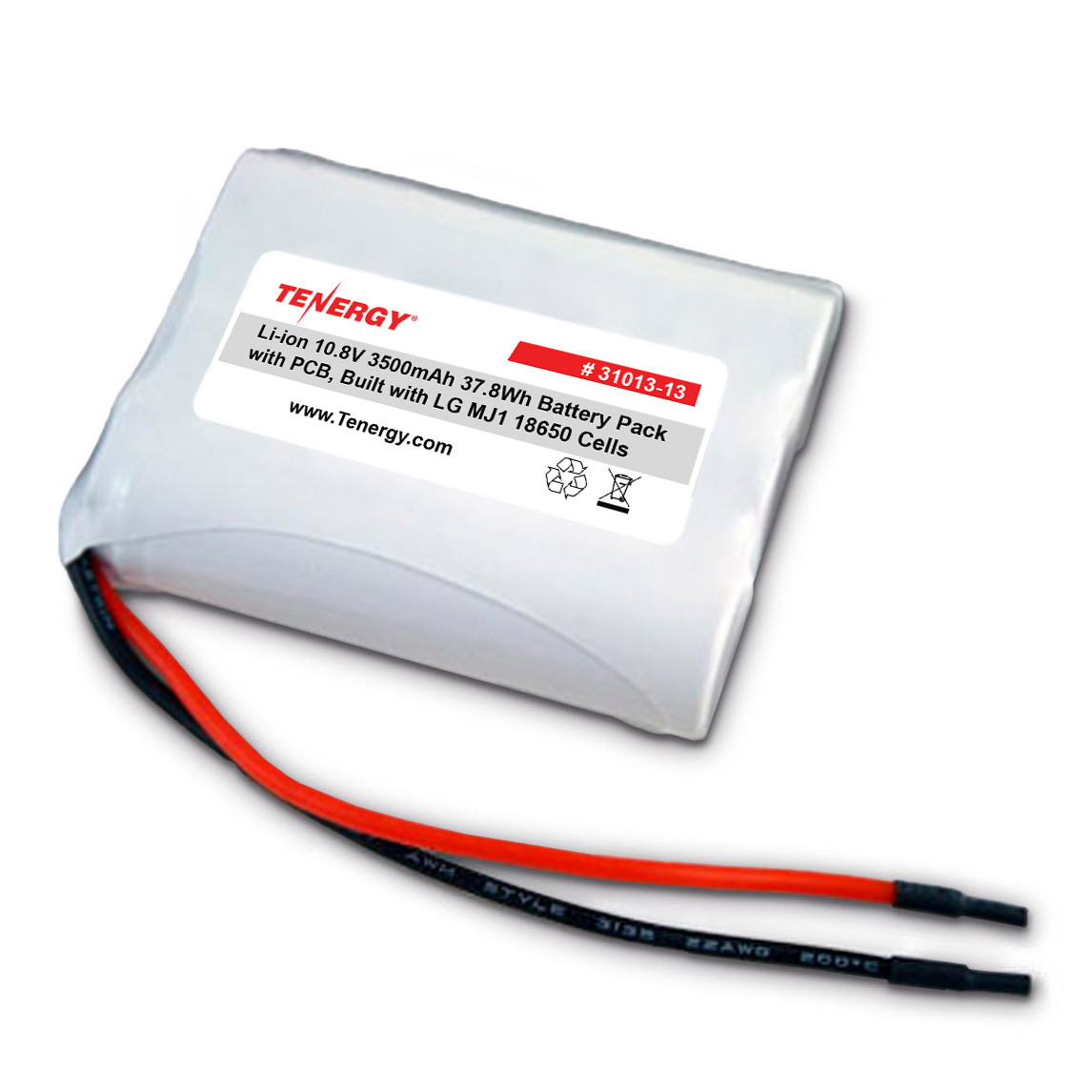

Product Highlights
- Chemistry Li-ion
- Nominal Voltage (V) 10.8
- Capacity (mAh) 3500
- Max Continuous Discharge Current 9A
- Weight 150g
- Dimension 71 x 55 x 20mm (LxWxT)
- Built with LG MJ1 18650 Cells
- Connector Bare Leads
output
- Type Pack
- Chemistry Li-ion
- Nominal Voltage (V) 10.8
- Capacity (mAh) 3500
- Max Continuous Discharge Current 9A
- Battery Charging Current
- Standard 0.7A
- Rapid 1.8A
- Weight 160g
- Dimension 71 x 55 x 20mm (LxWxT)
- Connector Bare Leads
- Avg. Temperature Ranges for
- Charging 32° F~113° F / (0~45°C)
- Discharging -4°F ~144°F / (-20~60°C)
- Storage -4°F~68°F / (-20~20°C)
- PCB/Pack Protection(for single cell voltages)
- Overcharge Protection 4.25±0.025
- Over-discharge Protection 2.5±0.08
- Over Current Cutoff (A): 17±4
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01281 | Tenergy TLP-4000 Li-Ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 1.0A |
| 01340 | Tenergy Li-Ion 11.1V Battery Pack Charger | 10.8V/11.1V (3S only) | 2.0A |
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.
- users should have enough knowledge on Li-Ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-Ion battery packs.
- it is strongly suggest that you use our Smart Li-Ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
