product highlights

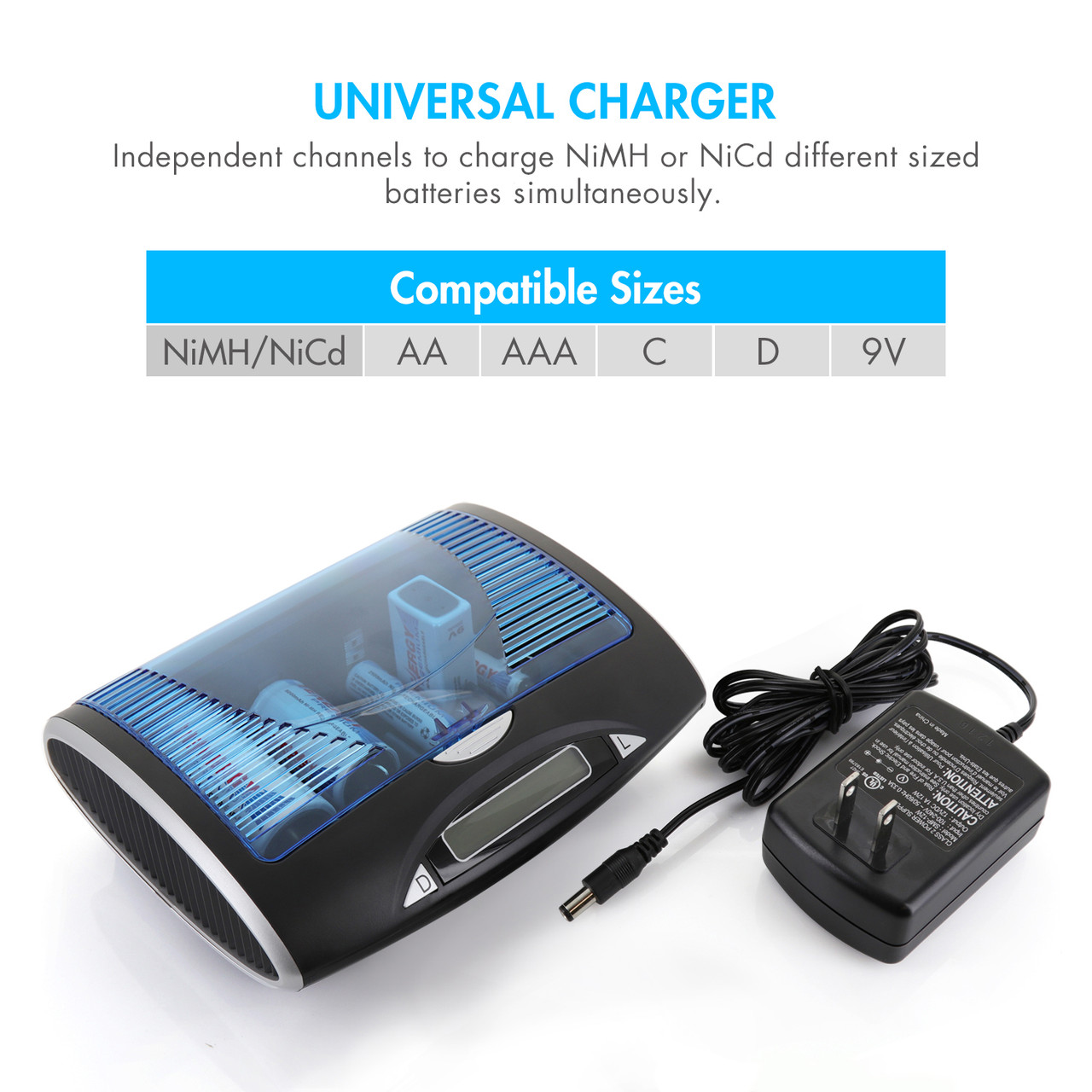

- UNIVERSAL CHARGER – Independent channels to charge NiMH or NiCd different sized batteries simultaneously.
- EASY TO USE – Automatic charging current selection for different sized batteries. Charge Current. (AAA – 500mA, AA/C/D 1300mA, 9V – 30mA)
- SMART BACKLIT LCD SCREEN – See clear notifications along with battery status.
- HOUSEHOLD READY – USB enable port to charge other electronic devices.
Features and Benefits:

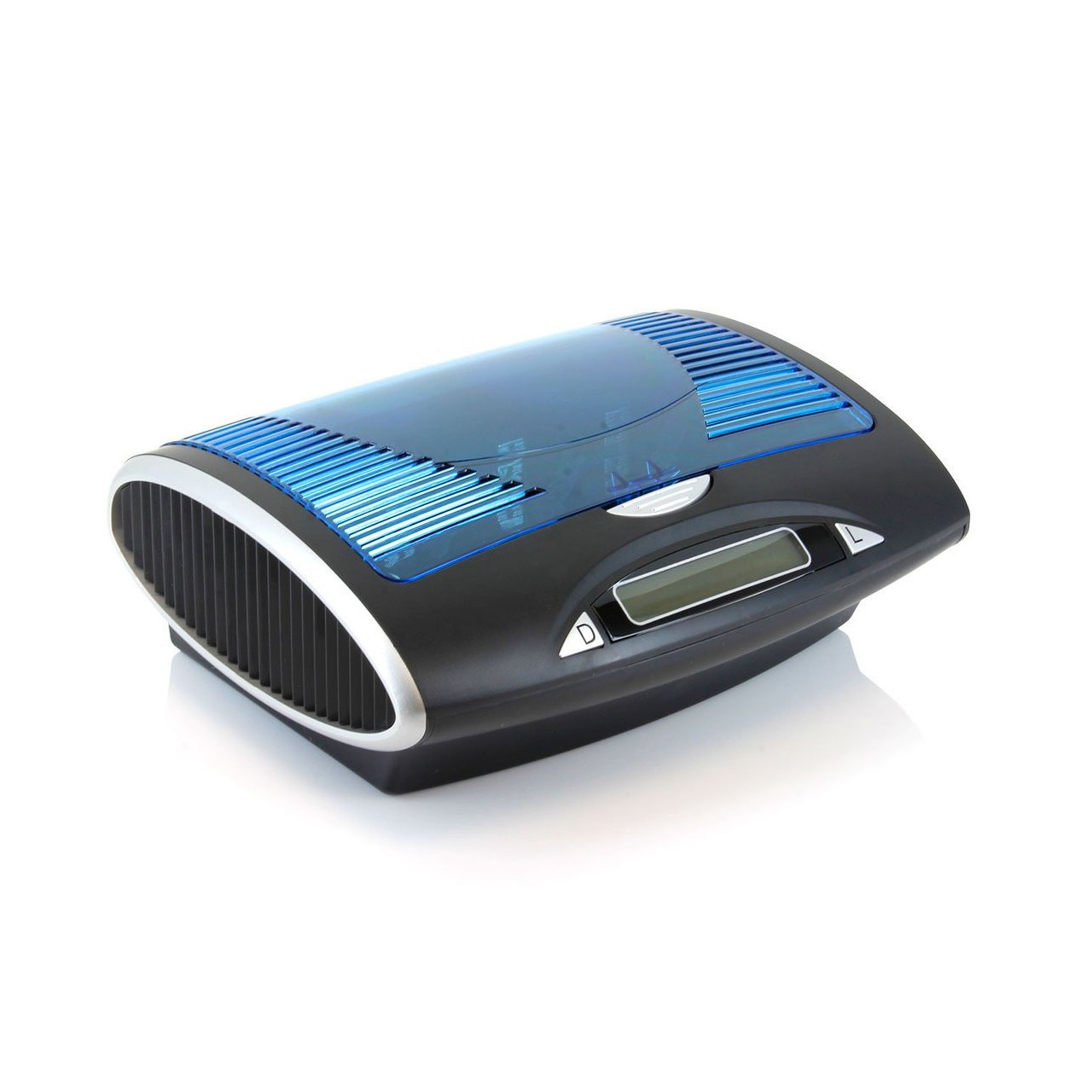

- UNIVERSAL CHARGER - The Tenergy T9688 smart universal battery charger can charge up to four batteries all with differing sizes such as AA/AAA/C/D cells. It has two individual channels for 9V batteries.
- EASY TO USE - It has an automatic charging current selection for different sized batteries for ease of use. With an automatic charge and discharge function, this intelligent battery charger streamlines usability for the everyday user.

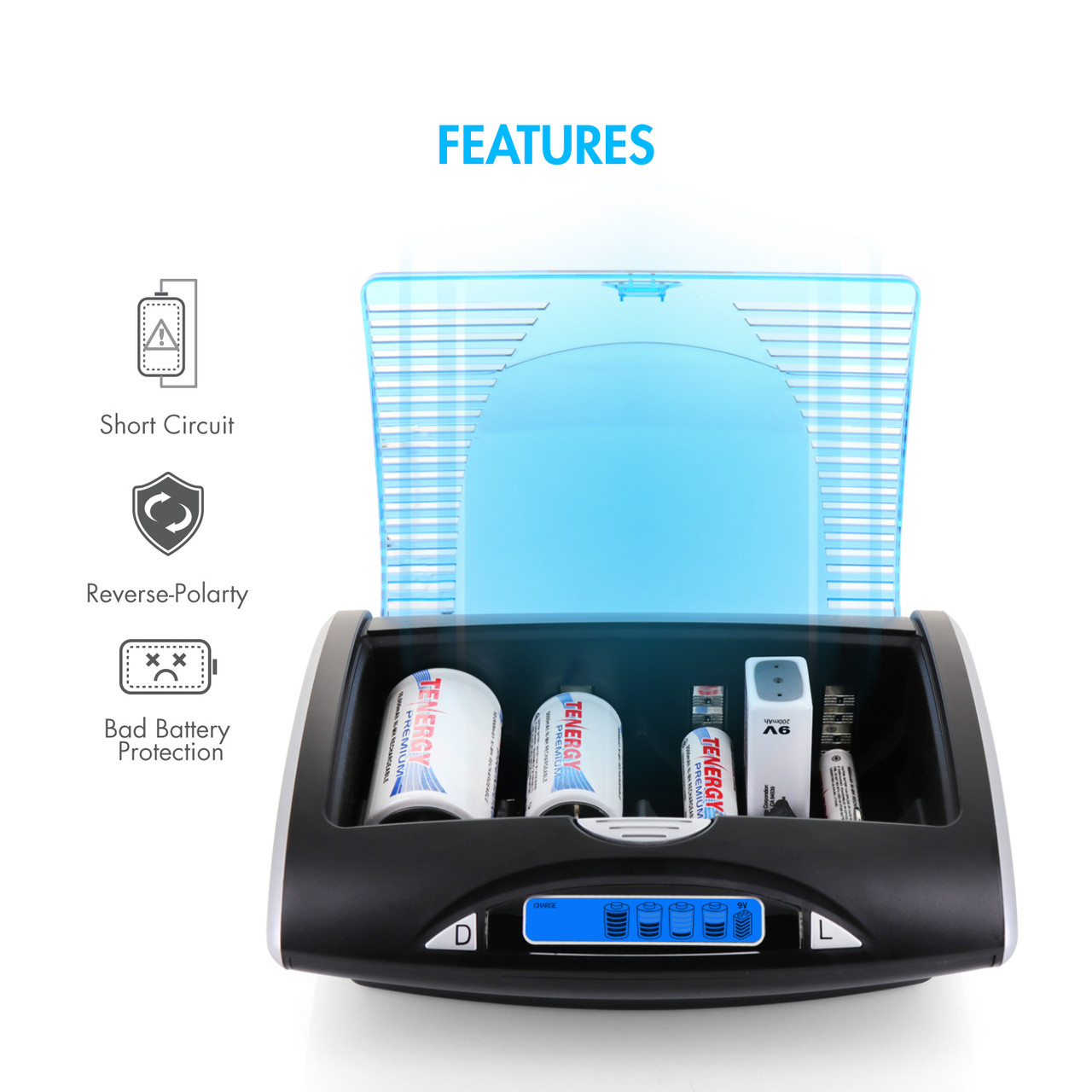

- PROTECTION - There is a number of safety features built in to the T9688 smart rechargeable battery charger. It has a safety timer control for overcharge protection, short circuit protection, non-rechargeable/bad cell detection, mechanical protection, negative delta V cut-off function (except for 9V batteries).
- SMART LCD SCREEN - At a glance, its backlight blue LCD screen is visible and shows clear notifications. It’s simple but smart interface screen provides charge, discharge, full and bad battery status. With battery icons that display capacity level, know when your batteries are fully charged and ready to be used.
- HOME APPLICATIONS - With so many charging options, the T9688 functions as the most comprehensive universal household battery charger. A built-in USB port (output: 5V DC 500mA) on the back side of the charger can power portable electronic devices for added convenience. Backed with a Tenergy 1 year warranty policy, continue to be powered by Tenergy.
Specifications:
- Input: 12V DC 1000mA (use with the supplied AC adaptor)
- Charge current:
- AAA - 500mA
- AA/C/D - 1300mA
- 9V - 30mA
- USB output: 5V DC 500mA
- Discharge current: AA/AAA/C/D - 400mA
- Detect method: Negative delta V (- ∆V) cut-off for AA/AAA/C/D size batteries
Warnings:
- Batteries may leak or explode causing personal injury if inserted improperly, disposed of in fire, mixed with other battery types, or short circuit.
- The USB socket will be ready for use only when charging is completed or there is no battery in the charger compartment. Make sure the maximum loading is not exceeding 500mA for the USB socket.
- Never use an extension cord or any attachment not recommended by manufacturer, otherwise this may result in a risk of fire, electric shock or injury to persons.
Download Manual:
