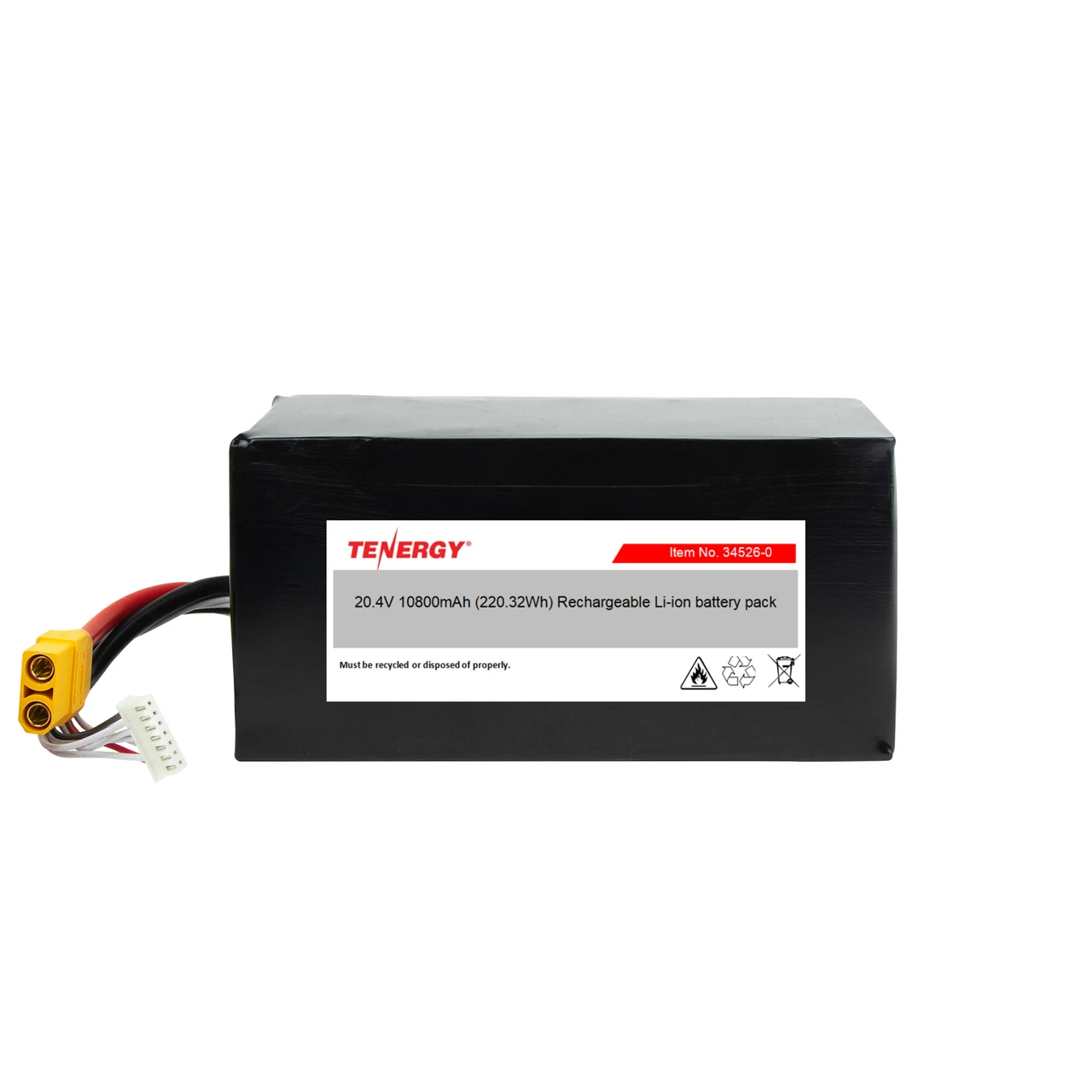

Specifications:

• Type: Pack
• Chemistry: Li-Polymer
• Nominal Voltage (V): 20.4
• Capacity (mAh): 10800
• Max Continuous Discharge Current: 30A Airflow Determined
• Battery Charging Current:
• 10 Amps Nominal, 20 Amps Airflow Determined
• Weight: 675g
• Dimensions: 5.2x4.9x14cm (LxWxH)
• Connector:
  • Discharge/Charge: XT90 connector, 150mm 10AWG wire
  • Balance Charge: JST XHP-7P balance connector, 70mm 22AWG wire
• Maximum Cell Temperature Range: -20 to 70°C,  0 to 165°F

PCM Features:

• Over-voltage
• Under-voltage
• Short-circuit
• Over-current
• Over-Temperature
• Cell balancing

Safety Precaution and Liability Release Form:

• By completing a purchase of this item, you are acknowledging that you have fully read and agreed to the terms and conditions of the reliability release form below for this Amprius battery pack:

•

CAUTION:

• When working with Li-Polymer cells, they are very sensitive to charging characteristics and may explode if mis-handled.
• Users should have enough knowledge on Li-Polymer rechargeable batteries in charging, and discharging before use.
• We are not responsible for any damage caused by misuse or mishandling of these Li-Polymer battery packs.
• It is strongly suggest that you use our Smart Li-Ion battery chargers to recharge the battery pack
• Never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
• Do not make parallel connection with more than three modules to avoid uneven charge.
