product highlights
- 30A Airflow Determined
- Compact Size: 9.5x3.8x7cm (LxWxH)
- Discharge/Charge: XT60 connector, 100mm 12AWG wire
- Balance Charge: JST XHP-6P balance connector, 100mm 22AWG wire
Product Description:
- Ultra high energy density
- 30A Airflow Determined
- 9.5x3.8x7cm compact size
- Ideal battery pack for small-sized to mid-sized UAS (Unmanned Aircraft Systems)
- For technical support or product inquiry, contact: iad@tenergy.com

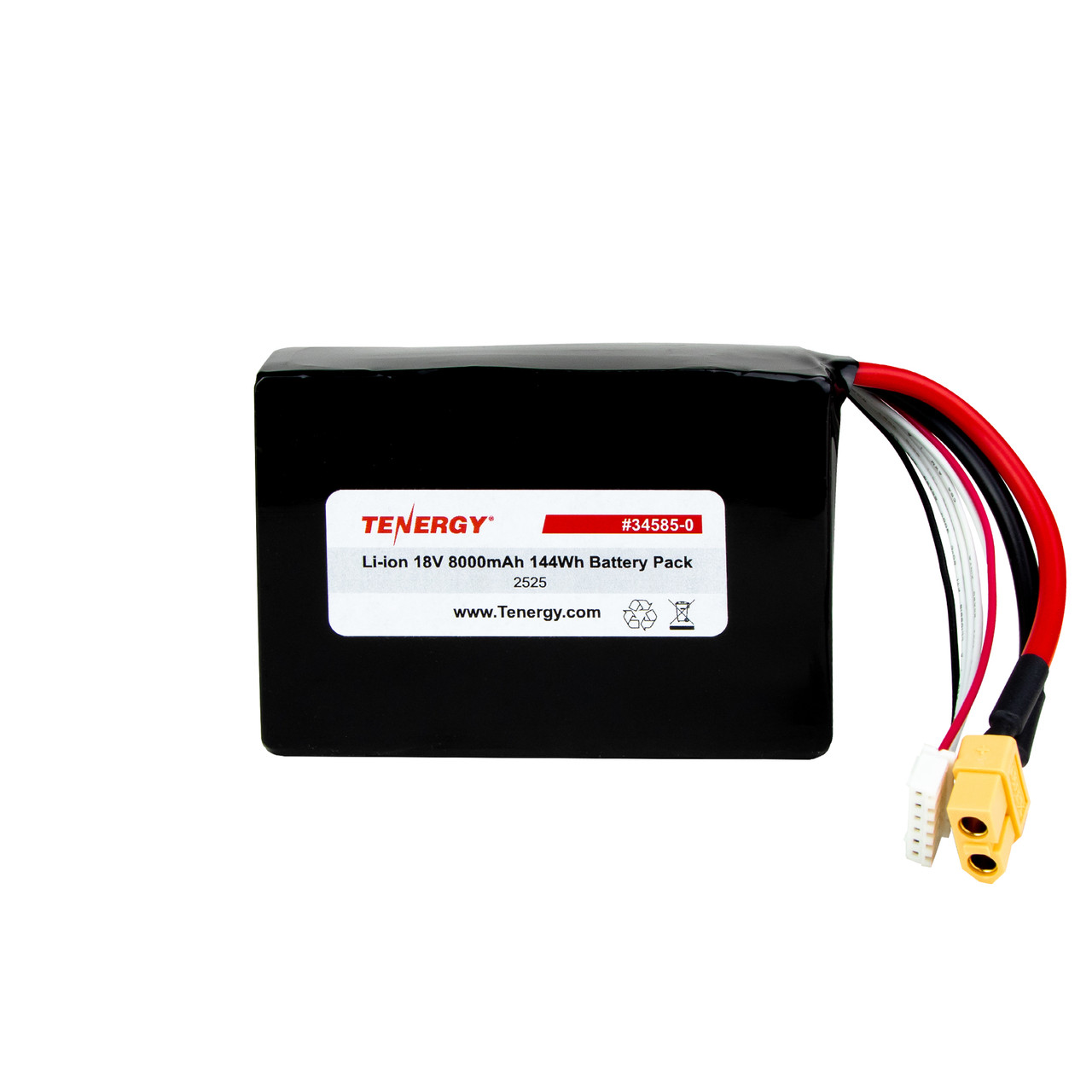

Specifications:
- Type: Battery Pack
- Chemistry: Li-ion Polymer
- Nominal Voltage (V): 18
- Capacity (mAh): 8,000
- Energy (Wh): 144
- Constant Discharge Current: 30A Airflow Determined
- Charging Current: 8 Amps Maximum
- Weight: 523.6g
- Dimensions: 9.5x3.8x7cm (LxWxH)
- Connector/Wire:
- Discharge/Charge: XT60 connector, 100mm 12AWG wire
- Balance Charge: JST XHP-6P balance connector, 100mm 22AWG wire
- Operating Temperature:
- o Discharge: -20 to 60°C, -4 to 140°F
o Charge: 0 to 45°C, 32 to 113°F
Safety Precaution and Liability Release Form:
- By completing a purchase of this item, you are acknowledging that you have fully read and agreed to the terms and conditions of the reliability release form below for this Amprius battery pack:
CAUTION:
- When working with Li-ion packs, they are very sensitive to charging characteristics and may explode if mis-handled.
- Users should have enough knowledge on Li-ion rechargeable batteries in charging, and discharging before use.
- We are not responsible for any damage caused by misuse or mishandling of these Li-ion battery packs.
- Never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- Do not make parallel connection with more than three modules to avoid uneven charge.
