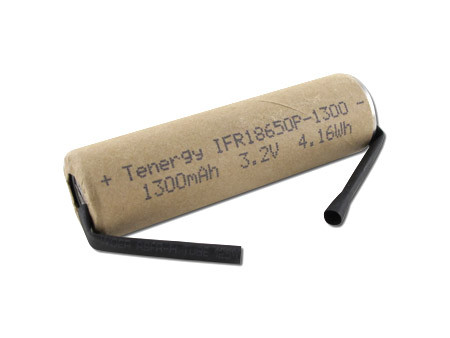

Tenergy 3.2V 1300mAh 4.16Wh LiFePO4 (IFR18650P) Power Cell Rechargeable Battery  - UL Listed

Tenergy 3.2V 1300mAh 4.16Wh LiFePO4 (IFR18650P) Power Cell Rechargeable Battery - UL Listed

Out of Stock

Tenergy 3.2V 1300mAh 4.16Wh LiFePO4 (IFR18650P) Power Cell Rechargeable Battery - UL Listed

SKU:
P/N 30059

SKU:
30059
UPC:
844949006903
Battery Size:
18650
Rechargeable:
Yes
Chemistry:
LiFePO4
Voltage (V):
3.2V
Capacity(mAh):
1300
PCB:
No
Category:
Batteries
Brand:
Tenergy
Rechargeable:
Yes
Capacity(mAh):
1300
Button Top:
No
For Pack Building:
Yes
Battery Bundle:
1-pack
Single Cell or Pack:
Single Cell

Min. Order Qty: 5,000+

saved: $0
x

Sales Tax

Tenergy only collects sales tax on orders shipped to addresses in the States of California.

You may be responsible for state and local sales/use taxes when filing your tax returns. Please check your local sales tax laws.

Out of Stock

Expected Availability: Special Order Only

Product Highlights

  • Nominal capacity: 1350mAh.
  • Nominal voltage: 3.2v.
  • Charging voltage: 3.65 ± 0.05v.
  • Model: ifr18650p-1300mAh.
  • Max. discharge current (pulse): 20a

Summarized Features and Benefits:

  • Description: Lithium Iron Phosphate (LiFePO4) rechargeable cell
  • Model: IFR18650P-1300mAh

Technical Data:

  • Nominal  Capacity: 1350mAh
  • Nominal  Voltage: 3.2V
  • Charging  Voltage: 3.65 ± 0.05V
  • Charging method: CC-CV
  • Initial  Charging  Current
    • Standard  Charge: 650mA
    • Max. Charge: 1300mA
    • Standard  Charge  Time: Approx. 4 hours
    • Max. Charge Time: Approx. 2 hours
  • Max. Discharge Current (Pulse): 20A
  • Discharge Method-Standard: 650 mA
  • Max. Continuous Discharge: 10 A
  • Discharge Cut-off Voltage: 2.0V
  • Height: Max. 65.3mm
  • Diameter: Max. 18.3mm
  • Operating Temperature: Charge: 5˚C ~ 60˚C, Discharge: -20C˚ ~ 60˚C
  • Storage Temperature: 1 month: -25˚C ~ 45˚C, 3 months: -25˚C ~ 30˚C
  • Weight: 1.1 ± .1 oz
show moreshow less
