Product Highlight
- 3.7V 70mAh Rechargeable Button Cell with Steel Shell
- High energy density, Low internal resistance
- Dimensions 12 x 5.4mm
- PCB (protection circuits) and battery pack can be customized
- Contact us for more button cell options in size, voltage, capacity and C-ratings
Features
- 3.7V 70mAh Rechargeable Button Cell with Steel Shell
- High energy density, Low internal resistance
- Operation Temperature range -20 ~ 60°C
- Dimensions 12 x 5.4mm
- PCB (protection circuits) and battery pack can be customized
- Contact us for more button cell options in size, voltage, capacity and C-ratings
output
- Type: Cell
- Chemistry: Li-ion
- Nominal Voltage (V): 3.7
- Capacity (mAh): 70
- Max Continuous Discharge Current: 1C
- Battery Charging Current:
- Standard: 0.2C
- Rapid: 0.7C
- Dimensions: 12±0.2 x 5.4±0.1mm
- Avg. Temperature Ranges for:
- Charging: 0~45°C
- Discharging: -20~60°C
- Storage:
- ≤1month: -20~60℃
- ≤3months: -20~45℃
- ≤1year: -20~25℃

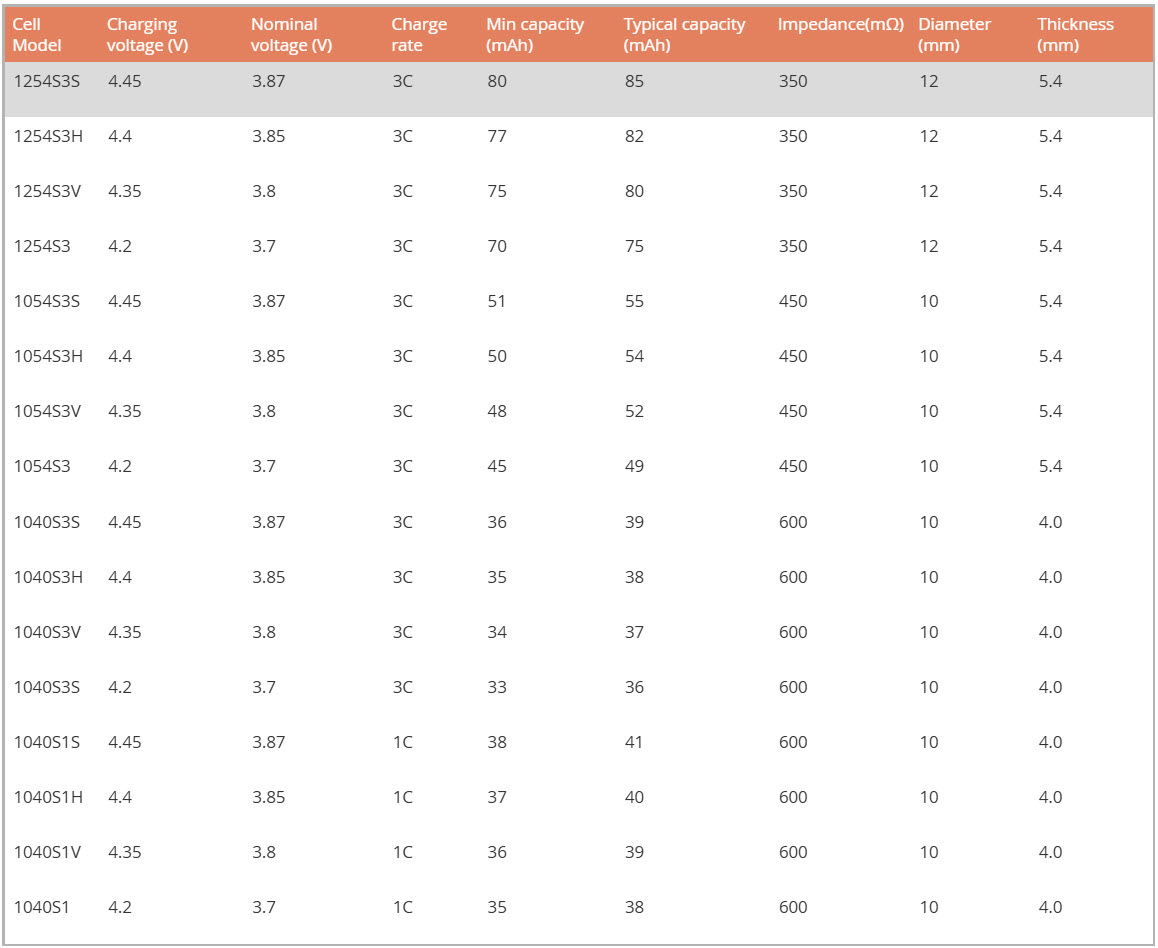

Contact us for more button cell options in size, voltage, capacity and C-ratings
