Summarized Features and Benefits

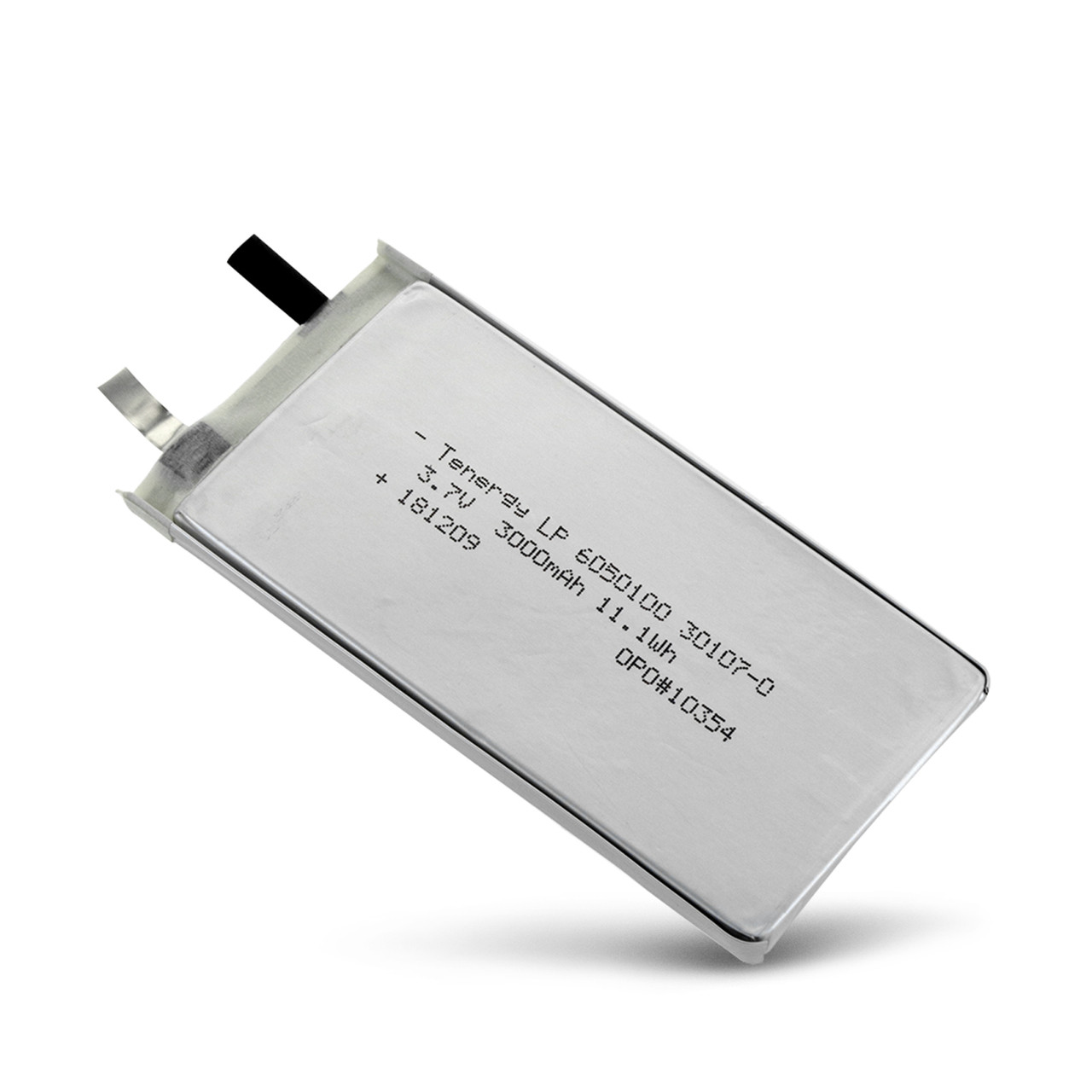

Technical Specification:

• Battery Chemistry: Polymer Li-Ion
• Electrical: 3.7V, 3000mAh
• Model: 6050100
• Continuous Discharge Current: 0.2C (0.6A)
• Max Discharge current: 2C (6A)
• Cycle Life: Up to 500 Times
• Weight: 61g
• Dimension: 102.5 mm x 51.0 mm x 6.0 mm

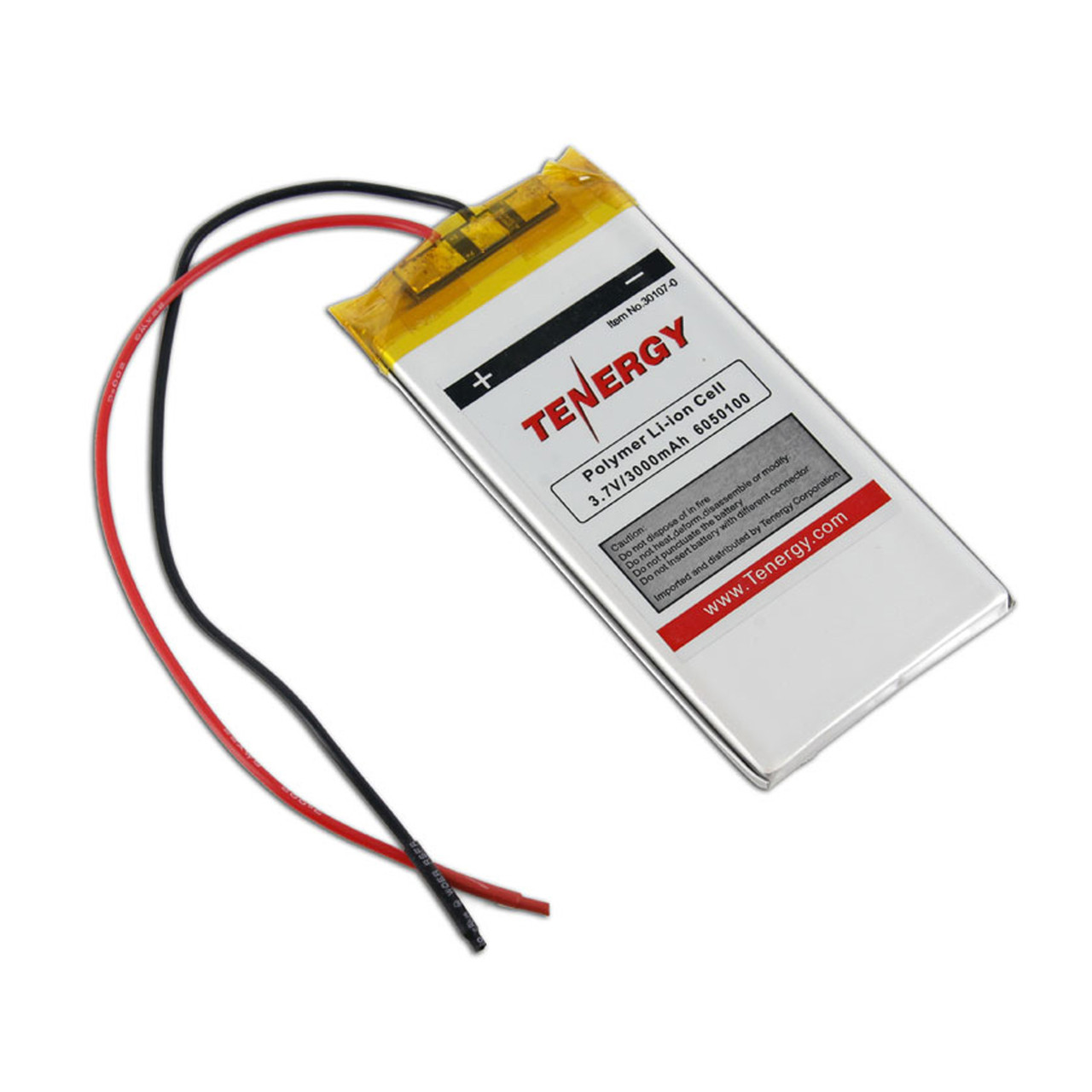

PCB Option (Specifications):

• Over Charge Protection
  • Over charge detection voltage: 4.25±0.05V
  • Over charge detection delay time: 1.0±0.3S
  • Over charge release voltage: 4.05±0.05V
• Over discharge protection
  • Over discharge detection voltage:2.5±0.1V
  • Over discharge detection delay time:20±6.0mS
  • Over discharge release voltage:3.0±0.075V
• Over current protection
  • Over current detection voltage:0.2±0.015V
  • Over current detection current: 3.0～6.0A
  • Detection delay time:12±4.0mS
  • Release condition: Cut load
• Short protection
  • Detection condition: Exterior short circuit
  • Detection delay time: 230～500uS
  • Release condition: Cut short circuit
• Interior resistance
  • Main loop electrify resistance: VC=4.2V；RSS≤70mΩ
• Current consumption
  • Current consume in normal operation: 4.0μA Type 8.0μA Max

CAUTION: when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled. User should have enough knowledge on Li-Ion rechargeable batteries in charging, discharging and assembly before use.
We are not responsible for any damage caused by misuse or mishandling of these Li-Ion batteries
