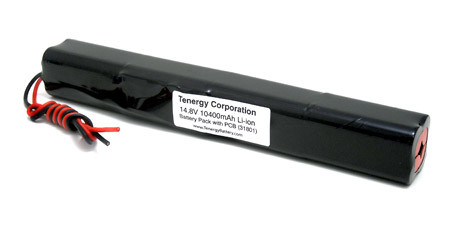

Product Highlights
- Chemistry Li-ion
- Nominal Voltage (V) 14.8
- Capacity (mAh) 10400
- Max Continuous Discharge Current 6A
- Weight 790g
- Dimensions 246 x 42 x 37mm (LxWxT)
- Connector Bare Leads
output
- Type Pack
- Chemistry Li-ion
- Nominal Voltage (V) 14.8
- Capacity (mAh) 10400
- Max Continuous Discharge Current 6A
- Battery Charging Current
- Standard: 2A
- Rapid: 5A
- Weight 790g
- Dimensions 246 x 42 x 37mm (LxWxT)
- Connector Bare Leads
- Avg. Temperature Ranges for
- Charging 32° F~113° F / (0~45°C)
- Discharging 14°F ~140°F / (-10~60°C)
- Storage 32°F ~86°F / (0~30°C)
- PCB/Pack Protection
- Over Charge Cutoff Voltage: >16.8V
- Over Discharge Cutoff: <12.0V
- Over Current Cutoff (A) 17 ± 4A
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01211 | Tenergy TLP-2000 Li-ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 0.5A |
| 01281 | Tenergy TLP-4000 Li-ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 1.0A |
| 01206-01 | Tenergy TLP-3000 Li-ion Battery Pack Charger | 14.8V (4S only) | 1.5A |
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.- users should have enough knowledge on Li-ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-ion battery packs.
- it is strongly suggested that you use our Smart Li-ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
